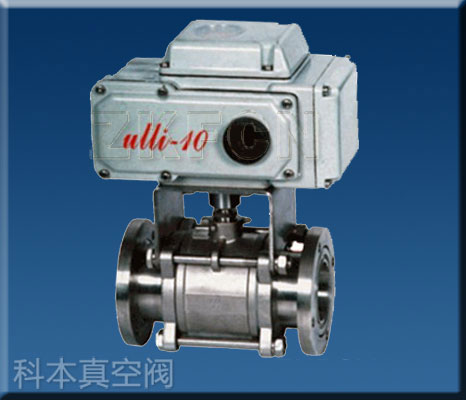

GUD型电动高真空(压力)球阀 Electromagnetism Vacuum air ball valve

GUD型电动高真空(压力)球阀是以电动装置驱动阀杆与球芯来执行启闭动作，达到接通或切断真空(压力)系统管路中的介质流。永嘉县科本真空阀门厂生产的GUD电动高真空压力球阀应用于真空、乳制品、酒业、生物工程、食品、制药、饮料、化妆品及化工领域。

 GUD electric high vacuum(pressure) ball valves uses electric device to drive the stem and ball for open and close, thus to put through or cut off the medium flow in vacuum(pressure)pipeline. It is used in the areas of vacuum, dairy products, breweries, biological engineering, foddstuff, pharmaceuticals, drinks, cosmetics and chemicals.

主要技术性能 Main Technical Performance

　阀门漏率：Valve Leak Rate 　≤1.3×10^-4Pa.L/S.
　适用温度：Applicable Temperature 　-30～+150℃　-30～+150℃(PPL密封)
　关闭时间：Close time 　≤30S

　适用范围：Appy Range
　连接型式　Loose Flange 　使用压力范围(Pa)
　活套法兰(GB6070、JB919) 　0.6×106～1.3×10^-4
　焊接法兰(GB6070、JB919) 　1.6×106～1.3×10^-4
　快卸法兰(GB4982) 　0.1×10⁶～1.3×10^-4
　螺纹连接　Threaded Connection 　1.6×10⁶～1.3×10^-4

主要零件材料 Materials of Main Parts

阀体、阀盖、阀杆：不锈钢 Body, disc and stem: stainless steel.
密封件：四氟乙烯、丁腈橡胶、氟橡胶、PPL。Sealing element: PTFE, NBR, Viton, PPL.
