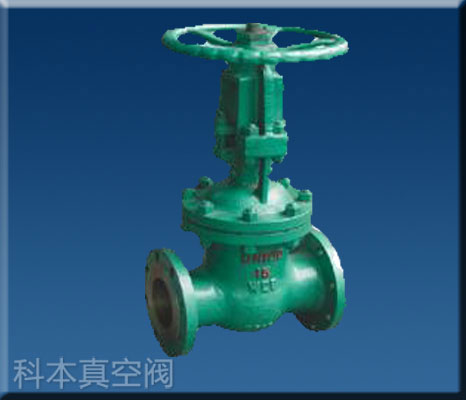

永嘉县科本真空阀门厂是专业生产真空系统隔离闸阀、NKZ661H电动真空隔离闸阀【NKZ61H NKZ961H】的厂家，欢迎您来电话：0577-67318321 咨询NKZ661H电动真空隔离闸阀,NKZ661H电动真空系统隔离闸阀价格,NKZ661H电动真空隔离闸阀厂家真空系统隔离闸阀 。
真空隔离闸阀主要性能规范
NKZ41H-16/NKZ941Y-16I NKZ44H-16/NKZ944Y-16I
| 产品类型 Product type | 适用介质 Applicable medium | 适用温度/℃ Applicable temperature | ||
| 水、蒸汽、空气 Water,Stram.Air | 真空隔离闸阀 ≤425 | ||
| 水、蒸汽、空气 Water,Stram.Air | 真空隔离闸阀 ≤550 |
真空系统隔离闸阀主要零件材料
| 零件名称 Part name | 阀体、阀盖 Body Bonnet | 阀杆 Valve stem | 阀板 Wedge gate | 密封面 Sealing face | 阀杆螺母 Yoke nut | 填料 Packing | 紧固件 Fastener | ||
| WCB | 2Gr13 | 25 | H：合金钢 H：alloy steel | 铝青铜 Al bronze | 膨胀复合石墨 Expanding compound graphite | 优质碳钢 High-grade carbon steel | ||
| 铬钼钢 Cr.M0 steel | 20Cr1M01VA 38CrMoAIA | 铬钼钢 Cr．Mo steel | Y：硬质合金 Y：carbide alloy | 铬钼钢 Cr．Mo steel |

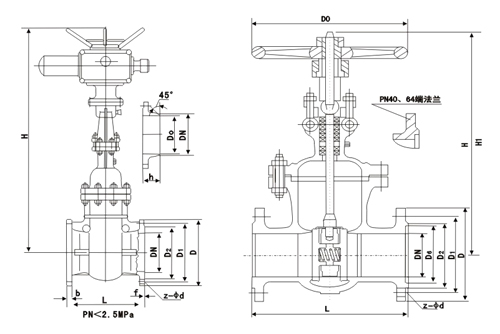

真空隔离闸阀主要尺寸及重量
| 公称压力 (PN/MPa) | 公称通径 DN(mm) | 真空阀主要外形尺寸和连接尺寸 | 重量(Kg) | 附法兰尺寸(mm) | ||||||||||||
| L | H | D | D1 | D2 | b | f | D6 | f2 | z-d | W | h | D0 | Dn | |||
| 6.4 | 50 | 250 | 350 | 175 | 135 | 105 | 26 | 3 | 88 | 4 | 4-23 | 300 | 43 | 70 | 48 | 64 |
| 65 | 280 | 405 | 200 | 160 | 130 | 28 | 3 | 110 | 4 | 8-23 | 300 | 60 | 75 | 65 | 82 | |
| 80 | 310 | 435 | 210 | 170 | 140 | 30 | 3 | 121 | 4 | 8-23 | 350 | 78 | 75 | 76 | 95 | |
| 100 | 350 | 515 | 250 | 200 | 168 | 32 | 3 | 150 | 4.5 | 8-25 | 400 | 100 | 88 | 98 | 117 | |
| 125 | 400 | 580 | 295 | 240 | 202 | 36 | 3 | 176 | 4.5 | 8-30 | 400 | 140 | 98 | 128 | 150 | |
| 150 | 450 | 735 | 340 | 280 | 240 | 38 | 3 | 204 | 4.5 | 8-34 | 450 | 204 | 110 | 149 | 172 | |
| 200 | 550 | 835 | 405 | 345 | 300 | 44 | 3 | 260 | 4.5 | 12-34 | 550 | 317 | 116 | 197 | 223 | |
| 250 | 650 | 905 | 470 | 400 | 352 | 48 | 3 | 313 | 4.5 | 12-41 | 650 | 475 | 122 | 245 | 278 | |
| 300 | 750 | 1080 | 530 | 460 | 412 | 54 | 4 | 364 | 4.5 | 16-41 | 750 | 630 | 136 | 293 | 330 | |
| 350 | 850 | 1340 | 595 | 525 | 475 | 60 | 4 | 422 | 5 | 16-41 | 800 | 850 | 154 | 341 | 382 | |
| 400 | 950 | 1450 | 670 | 585 | 525 | 66 | 4 | 474 | 5 | 16-48 | 900 | 1096 | 170 | 386 | 432 | |
| 10.0 | 50 | 250 | 350 | 195 | 145 | 112 | 28 | 3 | 88 | 4 | 4-25 | 300 | 48 | 72 | 48 | 64 |
| 65 | 280 | 405 | 220 | 170 | 138 | 32 | 3 | 110 | 4 | 87-25 | 300 | 68 | 84 | 63 | 82 | |
| 80 | 310 | 435 | 230 | 180 | 148 | 34 | 3 | 121 | 4 | 8-25 | 350 | 89 | 90 | 74 | 95 | |
| 100 | 350 | 515 | 265 | 210 | 172 | 38 | 3 | 150 | 4.5 | 8-30 | 400 | 112 | 100 | 97 | 117 | |
| 125 | 400 | 580 | 310 | 250 | 210 | 42 | 3 | 176 | 4.5 | 8-34 | 400 | 156 | 115 | 124 | 150 | |
| 150 | 450 | 735 | 350 | 290 | 250 | 46 | 3 | 204 | 4.5 | 12-34 | 450 | 220 | 130 | 144 | 172 | |
| 200 | 550 | 835 | 430 | 360 | 312 | 54 | 3 | 260 | 4.5 | 12-41 | 550 | 352 | 145 | 189 | 223 | |
| 250 | 650 | 905 | 500 | 430 | 382 | 60 | 3 | 313 | 4.5 | 12-41 | 650 | 535 | 170 | 235 | 278 | |
| 300 | 750 | 1080 | 585 | 500 | 442 | 70 | 4 | 364 | 4.5 | 16-48 | 750 | 730 | 195 | 281 | 330 | |
| 350 | 850 | 1340 | 655 | 560 | 498 | 76 | 4 | 422 | 5 | 16-54 | 850 | 995 | 210 | 333 | 382 | |
| 400 | 950 | 1460 | 715 | 620 | 558 | 80 | 4 | 474 | 5 | 15-54 | 950 | 1265 | 220 | 376 | 432 | |
